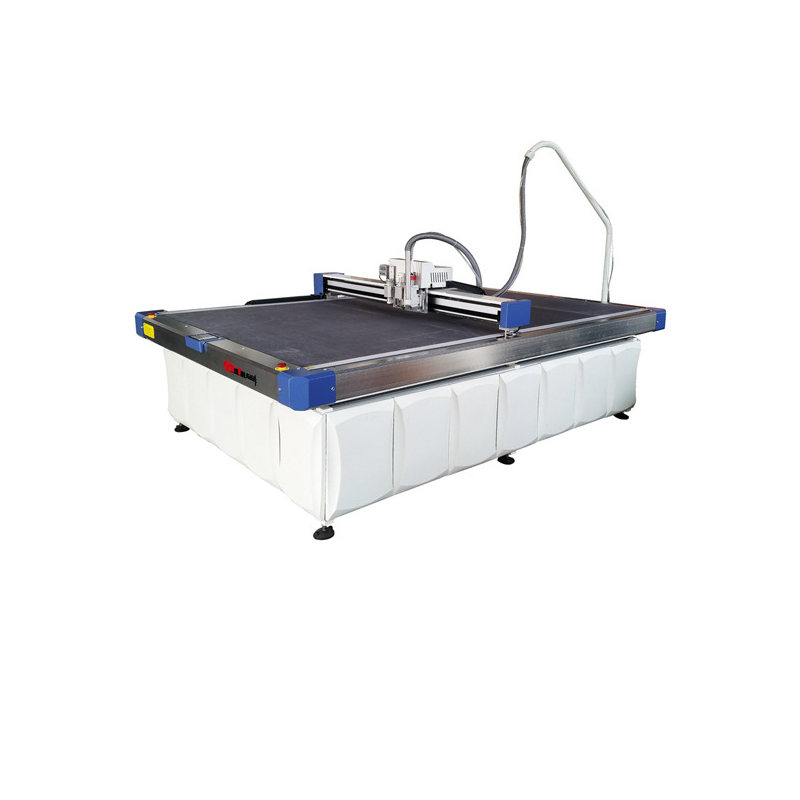

Carton color box proofing machine

Carton engraving and proofing machine carton proofing machine rubber box cutting prototype characteristics:

1. Ultra high frequency vibrating knife cutting technology eliminates the disadvantages of non-standard manual cutting, accuracy limitation of stamping machine, scorching / peculiar smell of laser cutting machine and so on;

2. Convenient output, high-speed cutting / indentation, rapid prototyping;

3. No knife die, saving manpower and material resources;

4. Digitalization to improve enterprise production management.

Carton engraving and proofing machine carton proofing machine rubber box cutting prototype functional features:

1. The Sino Swiss technical cooperation product adopts the servo motor imported from Switzerland, and the speed per minute can reach 25000 rpm.

2. The Italian AMT linear guide rail is used as the transmission track to ensure the smooth operation of the machine at high speed

3. The Japanese Panasonic servo motor is used to control the up and down movement of the vibrating knife and the pressing wheel respectively. The cutting depth of the vibrating knife and the pressing wheel can be controlled by the computer at will. For the half knife cutting when the gray board paper needs to be cut for the high-quality box, it can be controlled by the computer. The pressing wheel is controlled by a single motor, which can press out the perfect effect

4. The machine has four functional heads: vibrating cutter cutting head, crimping wheel, V-shaped cutting head and high-speed milling cutter head. It can cut honeycomb paperboard, acrylic board, corrugated paper, plastic corrugated board, grey paper, white paperboard, film, composite materials, leather, cloth, rubber plate, pearl cotton, aluminum-plastic board, foam KT board and other materials less than 30 or 60mm. The V-shaped cutting system can cut V-shaped grooves with five different angles, such as 45 °, 30 °, 22.5 °, 15 °, 0 °

5. All data lines of the whole machine are imported from Germany

6. The machine table adopts fiberboard imported from the United States, which has good air permeability, durability and is not easy to deform

7. The most stable Ethernet port transmits data with network cable, and can directly connect AI software and all software outputs such as AutoCAD and coraldraw

8. It is equipped with safety device (when the hand enters the infrared range, the machine will stop automatically).

9. Fast speed, up to 1500mm per second

10. Directly control all fine-tuning functions on the machine, including automatic optimization of drawings and files, without additional computer

11. The printed color box can be positioned and cut by infrared laser light, which is fast and accurate
