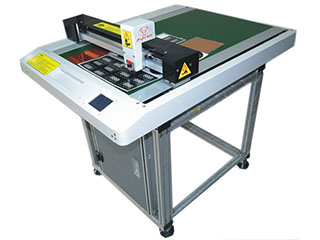

Blade proofing machine

Line drawing, drawing, text marking, indentation, half knife cutting and full knife cutting are completed at one time.

It is applied to the small batch production of diffusion film, aluminum film, copper film, shielding material, insulating material, optical material, film key switch, pot chip key, conductive tape, special adhesive tape, self-adhesive, PVC board, white cardboard and plastic board in the electronic industry.

Replace the traditional manual sample cutting and die proofing in the electronic industry to shorten the corresponding R & D time; Meet the production target of less batch, more orders and more styles.

▲ active rotary knife cutting technology eliminates the disadvantages of non-standard manual cutting, accuracy limitation of stamping machine, scorching / peculiar smell of laser cutting machine and so on;

▲ convenient output, high-speed cutting / indentation and rapid prototyping;

▲ no knife die, saving manpower and material resources;

▲ digitalization to improve enterprise production management.

1. The transmission system fully adopts imported linear guide rail, with high speed, high precision, low sound and stable quality. 2. Using the self-developed control system, the cutting effect is better than that of similar products. 3. The fastest cutting speed is 1200mm / s. 4. 256M buffer to complete fast transmission at one time. 5. Standard I / O interface, HP-GL format, can be operated offline. 6. It can be connected with any CAD software or HP-GL output software. It is widely used in the drawing and cutting of clothing, shoemaking, luggage and handbags, laser knife mold drawing, lighting, advertising gifts, self-adhesive, color box packaging, electronics and other industries.

※ optical material proofing machine self-adhesive cutting proofing machine pet die cutting proofing machine 3M die cutting proofing machine technical parameters

Cutting speed: nb090mm, cutting speed: 12000mm, material size: 9000xa-ocs, cutting speed: 900mm Cutting methods of flexible materials below 2mm such as electronic accessories: multi-purpose knife holder, 4 groups of different strokes, half knife and full knife settings, pen type / knife type: ordinary signature pen, oily pen, ball pen / special black steel knife fixing method: double-sided adhesive paste / vacuum adsorption / electrostatic adsorption, mechanical resolution: 0.007mm, software resolution: 0.025mm, 0.01mm 0.1mm optional transmission interface: standard parallel port, serial port, Ethernet port buffer capacity: 256M transmission material: imported linear guide rail command system: HP-GL compatible format NC panel: liquid crystal display and contact button working voltage / power: AC 220V ± 10% / 50Hz fuse specification: 6a, 2A motor: stepping motor, servo motor

Optical material proofing machine self-adhesive cutting proofing machine pet die cutting proofing machine 3M die cutting proofing machine welcome to consult
